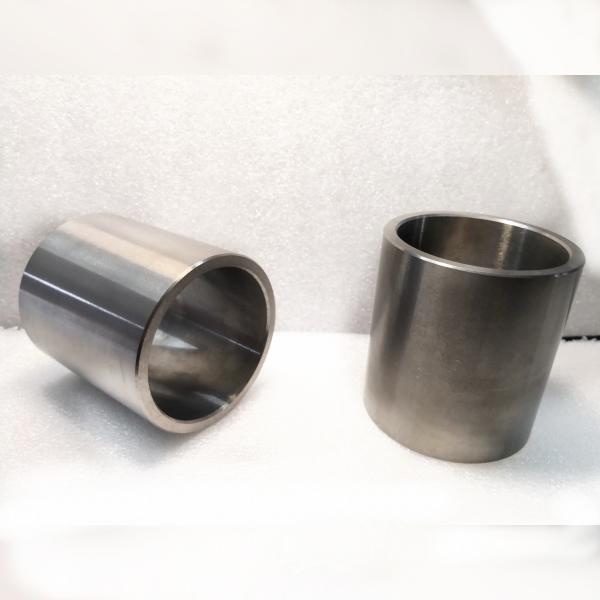

Custom Wear Parts Tungsten Carbide Sleeve Bushings Wear Resistance With Hight Impact Resistance
ZGJRDCC Tungsten carbide sleeve bushings are widely used in modern production and manufacturing, And have excellent performance of high temperature, corrosion resistance, and wear resistance.
Why use tungsten carbide?
1. Abrasive resistant, corrosion free, good compression property, the most wear-resistant bushing, heat resistance, low maintenance ;
2. The hardness is 10 times of gold, 5 times of tool steel, 4 times of titanium, oil resistance, separate the harmful medium;
3. No shape change, no twist when temperature is above 1000 °C or below 500 °C, long service life, the maximum height can reach 270mm;
In the petroleum machinery industry, the long-term operation of equipment is essential for the success of any operation. The basic requirements for this type of machinery include the ability to withstand corrosion, high temperatures, and wear. This is where tungsten carbide bushings, sleeves, and dies come into play. These components are specially designed to provide the necessary durability and resistance to ensure long-term operation in harsh environments.
One important consideration for precision alloy bushings is their dimensional precision. The production and processing of these bushings require strict process cooperation to ensure that they meet the necessary specifications. The use of tungsten carbide materials in these bushings can help to ensure that they maintain their dimensional accuracy over time, even under extreme stress and pressure.
At ZGJRDCC, we offer a wide range of tungsten carbide grades to suit different working environments. Our materials are carefully selected and tested to ensure that they meet the necessary standards for durability, wear resistance, and corrosion resistance. We understand the importance of high-quality components in the petroleum machinery industry, and we are committed to providing our customers with the best possible products to ensure long-term operation and success.
advantage of tungsten carbide sleeve bushings is their high impact resistance. These components are designed to absorb and distribute impact forces, which helps to prevent damage to the surrounding equipment and machinery. Additionally, they can withstand high temperatures and pressures, making them suitable for use in a variety of industrial applications
Grade as following :
YG6,YG6X,YG8,YG8.2,YG8L,YG15,YG20,YG20C,YG20D etc are the traditional material,suitable for the normal tungsten carbide roller.
1. Tungsten carbide bushing has the characteristics of wear resistance and impact resistance.
2.It is the supporting parts used in the mechanical parts, in order to achieve sealing, wear protection and other functions.
In the field of valve applications, the tungsten carbide bushing is in the bonnet and is the corrosion-resistant materials for sealing.
3.In the field of bearing application, the carbide bushings are used to reduce wear between the bearing and the shaft seat, and to avoid the increase of clearance between shaft and hole.
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties |
| WC | Co | Density | Bend Strength | Hardness |
| % | % | G/Cm3 | N/mm2 | HRA |
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
